Know Your SHIELD TV

SHIELD TV System

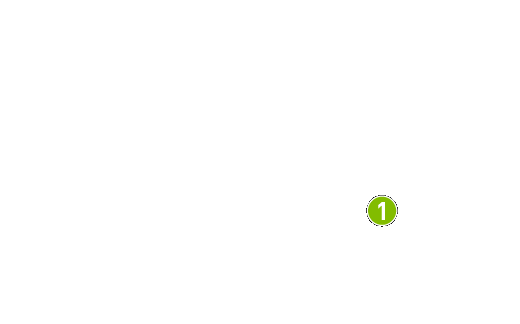

Top View

SHIELD TV Light

NOTE To adjust the brightness of the SHIELD light, go to Settings > System > "LED brightness."

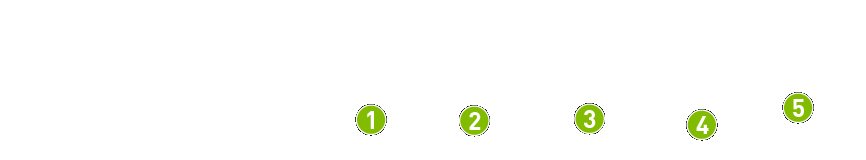

Back View

	USB 3.0 / USB PC Connection port
	USB 3.0
	HDMI 2.0
	Ethernet
	Power in

NOTE To connect SHIELD to PC via USB cable, go to Settings > Storage & reset > SHIELD Storage Access > Using USB.

NOTE If "Using USB" is enabled, the USB slot can no longer be used for external storage or to connect to other peripheral devices.
